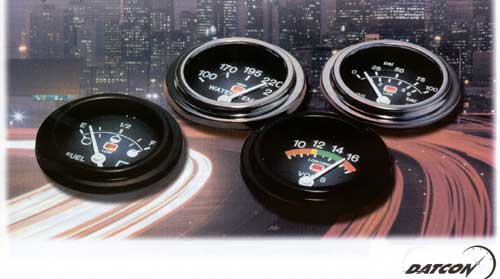

Integrated warning systems for
Datcon brand instruments
GENERAL DESCRIPTION:
Integrated warning lights,
switch outputs & engine shut-down features for Datcon brand
Automotive, Heavy Duty Industrial & IllumaSeal instruments
• Ideal for protecting valuable O.E.M. equipment especially in
cases where operators might not otherwise be aware of potential
problems • Functions monitored include oil pressure, water
temperatures, volts & fuel level • Systems allow customers to
eliminate costly sender/switch combinations, detection modules,
extra wiring & connectors for an " all-in-one" solution •
Sensing electronics - sender, switches and LED warning lights -
are incorporated inside gauge • Detection circuitry is matched
to instrument for improved accuracy, thus eliminating the gauge
as a potential source of system variation ( as caused by
so-called tolerance "stack-ups") • Three versions allow for
natural "option-up" strategy depending on function required and
budget considerations. SERIES 2000™:
Smart Instrument system that monitors engine oil pressure
and temperature, battery voltage & fuel levels
• Integral ultra-bright red or amber LED
located in center of gauge activated by the following
conditions: high temperature, low or high battery voltage or
fuel level • Wide range of set points, factory calibrated.
SERIES 2001™:
Same as Series 2000 except that system includes a 2-amp
switch output configured as normally open in a switch-to-ground
• Rugged MOSFET transistor powers switching over an operating
temperature range of -40' to +85' C • Monitor oil pressure and
water temperature functions only • LED'S are located either left
or right of center on the gauge dial • Factory-calibrated
SERIES 2002™:
Integrated LED warning lights - pre-alarm for low pressure
or high water temperature (located left of center on the dial )
and shut-down warning mode (located right of center)
• Integral engine shut-down function with
optional delay/timer ( if customer's engine does not include a
built-in delay feature to compensate for low pressure on
start-up) • 2-amp switch, MOSFET type transistor •
Factory-calibrated with added features of allowing for feild
calibration which in turn allows customers to use single part
umber for multiple configurations.
|
