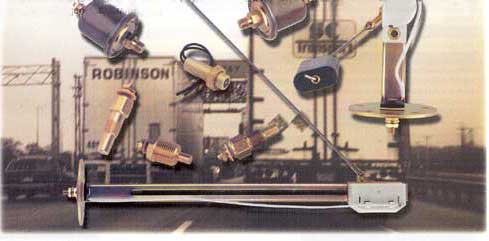

Rugged sender products that interface with Datcon brand
instruments FUEL SENDERS:
Full line of regular and heavy duty fuel senders for OEM
applications Fixed or adjustable (
6"-24") Electrical "match" (resistance) is 240-33.5 Available
in common flange ground version with # 10-32 ground & sender
terminal stud isolated ground version with # 10-32 ground &
sender terminal stud Sender "kits" include sender,
gasket & hardware SAE 5-hole flange configuration for tank
openings as small 1.35 " ( +/- 0.2) Two fuel sender mounting
configurations are available, each with two mounting positions
for flange orientation Custom lengths; flanges; integral fuel
pick-up, return & venting tubes; calibrations; electrical
"matches" ; & floats
See also IntelliSensor section for
full line of electrical liquid (hydrocarbon-based) measuring
system (e.g. fuel sensors)
TEMPERATURE SENDERS:
Full line of economically priced temperature senders
available in Datcon "high" & "low" range matches
Temperature ranges up to 240 F & 320 F
Thread sizes: 1/8"-27 NPTF, 3/8"-18 NPTF, 1/2" - 14 NPTF,
5/8"-18' NPTF, M14 x 1.5, M16 x 1.5 "universal" sender kit
includes 1/4"-27 NPTF sender & 1/4", 3/8" & 1/2 " adapters
#10-32 terminals Thermally isolated senders available with
1/2"- 14 NPTF & 9/16"-18"NPTS thread mountings Dual-station
units available in Datcon high or low range ( to drive two
separate gauges) Consult with factory representatives or your
distributor for isolated ground options & other electrical
"matches"
OIL PRESSURE SENDERS:
Full line of regular-, heavy - & severs-duty oil pressure
senders for OEM applications
Standard pressure ranges from 40 to 400 psi Electrical "match"
(resistance) is 240-33.5Ω Fully sealed & dust proof heavy &
severe duty units Thread sizes: 1/8"-27 NPTF, 1/4"-18 NPTF &
M10 x 1.0 #10-32 terminals Common ground through mounting
thread Severe duty senders ( 80, 100, 125 & 150 psi) assure
desired performance in high shock & vibration environments
Dual-station units available (to drive separate gauges)
SPEED SENSORS:
Four standard magnetic sensors:3/4"-16 threads, 1.9" & 3.4" long
& 5/8-18, 1.9" & 3.4" Air
gap to gear tooth 0.03" Corrosion-resistant anodized aluminum
housing Two pulse generators: 16-pole pulse generators
16-pole, 7/8"-18" UNS &60-pole, 7/8" - 18" UNS: Four drive tangs
for 16-pole pulse generator: .104", .152", .188" & .203"; four
tangs for 60-pole pulse generator (same sizes)
|
